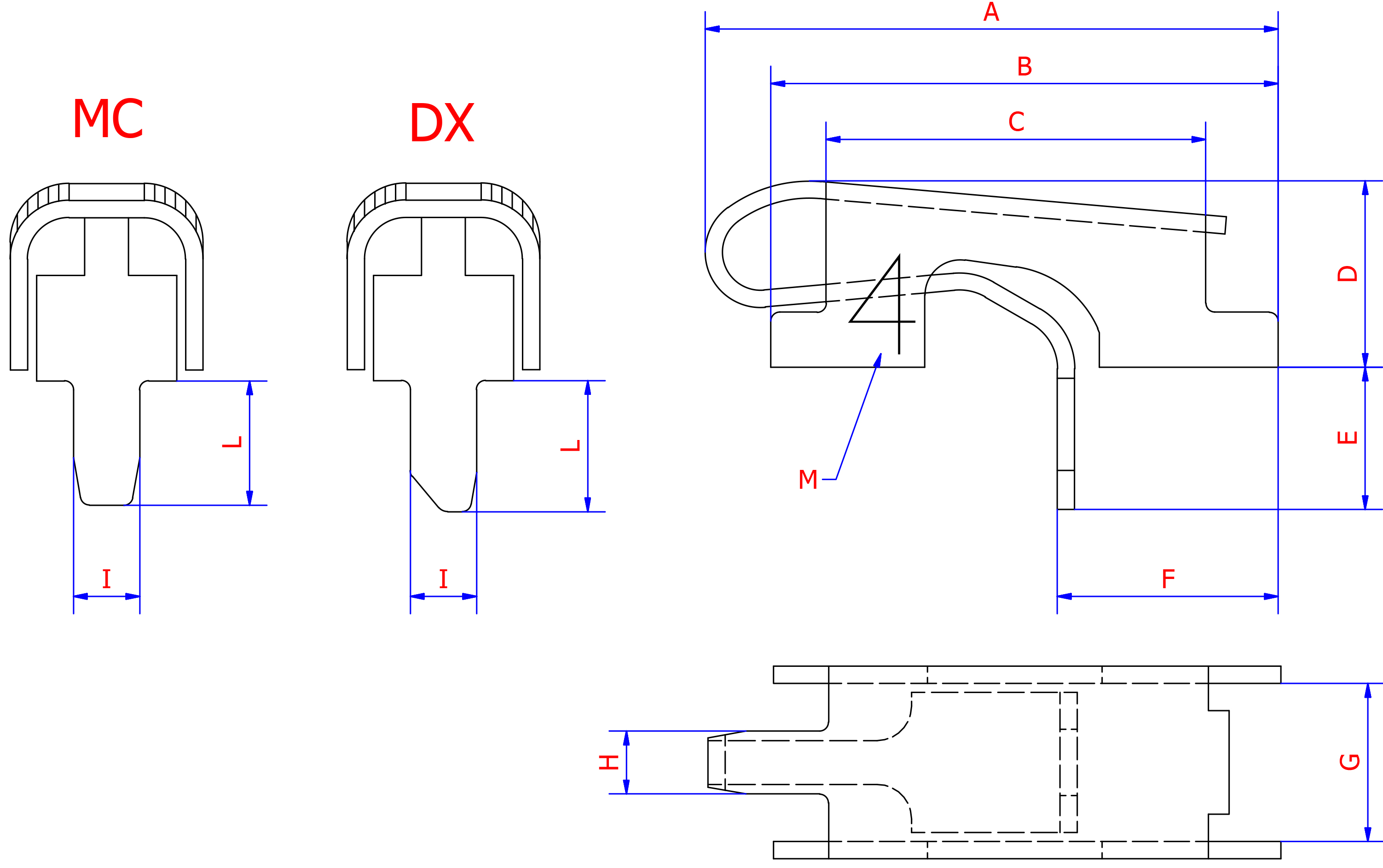

3R
| ART. | A mm. | B mm. | C mm. | D mm. | E mm. | F mm. | G mm. | H mm. | I mm. | L mm. | M mm. | SPESS. thick. | Pos. Pin |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1770 | 8.30 | 7.35 | 5.50 | 2.70 | 2.06 | 3.20 | 2.29 | 0.91 | 0.96 | 1.90 | 4.00 | 0.25 | DX |
| 1764 | 8.36 | 7.37 | 5.74 | 2.65 | 2.41 | 4.17 | 2.29 | 0.965 | 0.965 | 2.255 | 13.00 | 0.25 | MC |
| 1765 | 8.36 | 7.37 | 5.74 | 2.65 | 2.16 | 4.00 | 2.29 | 0.91 | 0.965 | 1.81 | 15.00 | 0.25 | MC |
*MC = Middle Insert DX = Right Insert SX = Left Insert
